Sano
The antibacterial coated ceiling for laboratories and clean rooms
Sano
The antibacterial coated ceiling for laboratories and clean rooms
Sano
The ceiling with biocide treatment
High biocidal power for spaces where hygiene must be maximum: operating rooms, laboratories, clean rooms in hospital architecture works. Permanent bactericidal properties and maximum light reflection. Tested according to ISO 14644-1 and HF S 90-351 standards, which ensures an ISO 5 result that prevents the proliferation or growth of fungi and bacteria. It is a simple, high quality and durable solution, packed in boxes of 8 plates of 595x595mm and protected with nylon stretch wrap.
Slide Title
Escriba su subtítulo aquíButton

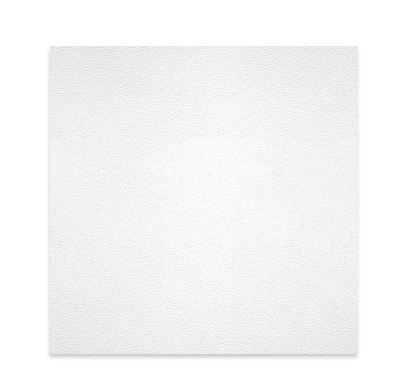

Sano Ceiling
Datasheet:
Edge: Square - Type A
Espesor: 8,00 mm (±0,5mm)
Average weight: 5.80 kg/m2
Units/Box: 8 plates
(595x595 mm) =2,88 m2
Thermal conductivity: 0.25 W/m K (UNE EN 12524 Standard)
Reaction to fire: A2 s1 d (Certification No. EEA-1800-0071)
Fire resistance (max.): 30 minutes
Covering film: Polyvinyl chloride WHITE COLOR 80 g/m2
Indicated use: Removable ceilings in laboratories, hospitals and areas where high levels of hygiene and bactericidal protection are required.
Certification results:
(According to ISO 14644-1 and NF S 90-351)
Test Result
Particle class
for use in clean room: ISO 5
Elimination kinetics
of particles: CP(0.5)10
Microbiological control of the air:
Staphylococcus aureus: M1 - area 4
Candida albicans: M1 - area 4
Aspergillus brasiliensis: M1 - area 4
Bacillus cereus: M1 - area 4
Acinetobacter baymanii: M1 - area 4
Streptococcus pneumoniae: M1 - area 4
DATA SHEET
Edge Square - Type A
Thickness 8,00 mm (±0,5mm)
Average weight 5,80 kg/m2
Units/Box 8 panels (595 x 595 mm) = 2,88 m2
Thermal conductivity 0.25 W/m K (Standard UNE EN 12524)
Reaction to fire A2 s1 d0 (Certification No. EEA-1800-0071)
Fire resistance (max.) 30 minutes
Coating film Polyvinyl chloride WHITE COLOR 80 g/m2
Indicated use Demountable ceilings in laboratories, hospitals and areas where high levels of hygiene and bactericidal protection are required
Certification results
(According to ISO 14644-1 and NF S 90-351)
Test Result
Cleanroom particle class ISO 5
Particulate removal kinetics CP(0.5)10
Microbiological control of air
Staphylococcus aureus M1 - Area 4
Candida albicans M1 - area 4
Aspergillus brasiliensis M1 - area 4
Bacillus cereus M1 - area 4
Acinetobacter baymanii M1 - area 4
Streptococcus pneumoniae M1 - area 4
-
Product Information:
Sano Ceilings contain the same properties of EasyClean; in addition, they provide a surface with a high biocidal power that prevents the growth of fungi and bacteria, providing antimicrobial properties suitable for hygienic applications in laboratories and clean areas
Sano
The ceiling with biocide treatment
High biocidal power for spaces where hygiene must be maximum: operating rooms, laboratories, clean rooms in hospital architecture works. Permanent bactericidal properties and maximum light reflection. Tested according to ISO 14644-1 and HF S 90-351 standards, which ensures an ISO 5 result that prevents the proliferation or growth of fungi and bacteria. It is a simple, high quality and durable solution, packed in boxes of 8 plates of 595x595mm and protected with nylon stretch wrap
Título de diapositiva
Escriba su subtítulo aquíBotón

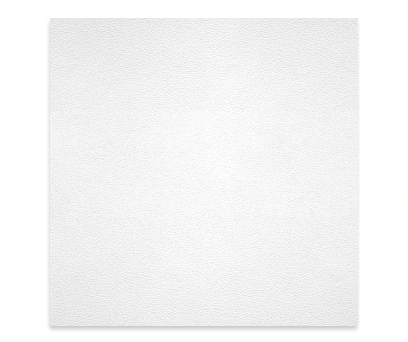

Sano Ceiling
Data Sheet
Edge: Square - Type A
Thickness: 8,00 mm (±0,5mm)
Average weight: 5,80 kg/m2
Units/Box: 8 panels (595 x 595 mm) = 2,88 m2
Thermal conductivity: 0.25 W/m K (Standard UNE EN 12524)
Reaction to fire: A2 s1 d0 (Certification No. EEA-1800-0071)
Fire resistance (max.): 30 minutes
Coating film: Polyvinyl chloride WHITE COLOR 80 g/m2
Indicated use: Demountable ceilings in laboratories, hospitals and areas where high levels of hygiene and bactericidal protection are required
Certification results:
(According to ISO 14644-1 and NF S 90-351)
Test Result
Cleanroom particle class: ISO 5
Particulate removal kinetics: CP(0.5)10
Microbiological control of air:
Staphylococcus aureus: M1 - Area 4
Candida albicans: M1 - area 4
Aspergillus brasiliensis: M1 - area 4
Bacillus cereus: M1 - area 4
Acinetobacter baymanii: M1 - area 4
Streptococcus pneumoniae: M1 - area 4
Ficha Técnica:
Borde: Cuadrado - Tipo A
Espesor: 8,00 mm (±0,5mm)
Peso medio: 5,80 kg/m2
Unidades/Caja: 8 placas (595 x 595 mm) = 2,88 m2
Conductividad térmica: 0,25 W/m K (Norma UNE EN 12524)
Reacción al fuego: A2 s1 d0 (Certificación Nº EEA-1800-0071)
Resistencia al fuego (máx.): 30 minutos
Película de revestimiento: Policloruro de vinilo COLOR BLANCO 80 g/m2
Uso indicado: Techos desmontables en laboratorios, hospitales y áreas donde se requiere altos niveles de higiene y protección bactericida.
Resultados de certificación:
(Según ISO 14644-1 y NF S 90-351)
Ensayo Resultado
Clase de partículas de uso en sala blanca: ISO 5
Cinética de eliminación de partículas: CP(0,5)10
Control microbiológico del aire:
Staphylococcus aureus: M1 - área 4
Candida albicans: M1 - área 4
Aspergillus brasiliensis: M1 - área 4
Bacillus cereus: M1 - área 4
Acinetobacter baymanii: M1 - área 4
Streptococcus pneumoniae: M1 - área 4
-
Product Information:
Sano Ceilings contain the same properties of EasyClean; in addition, they provide a surface with a high biocidal power that prevents the growth of fungi and bacteria, providing antimicrobial properties suitable for hygienic applications in laboratories and clean areas
Benefits of this type of ceiling
Benefits of this type of ceiling
Bactericidal properties permanent
Easy to clean
High light reflection
Vapor barrier
Bactericidal properties permanent
Easy to clean
High light reflection
Vapor barrier
Resistance to humidity
Recyclable
Durability and Resistance
High fire resistance
Resistance to humidity
Recyclable
Durability and Resistance
High fire resistance
